wallPen wall printing machineGerman engineering,
built for vertical surfaces.
wallPen prints directly onto walls, glass and other vertical surfaces. No wallpaper, no vinyl, no panels to fit. The artwork goes straight onto the surface and is cured in place, indoors or outdoors.
Developed and manufactured in Germany, according to wallPen GmbH.
Designs high precision direct to wall UV printers for vertical surfaces.
Reliable, precise, built for commercial use.
Interiors, branding, retail, hospitality and offices.
Up to four metres high.
Unlimited width.

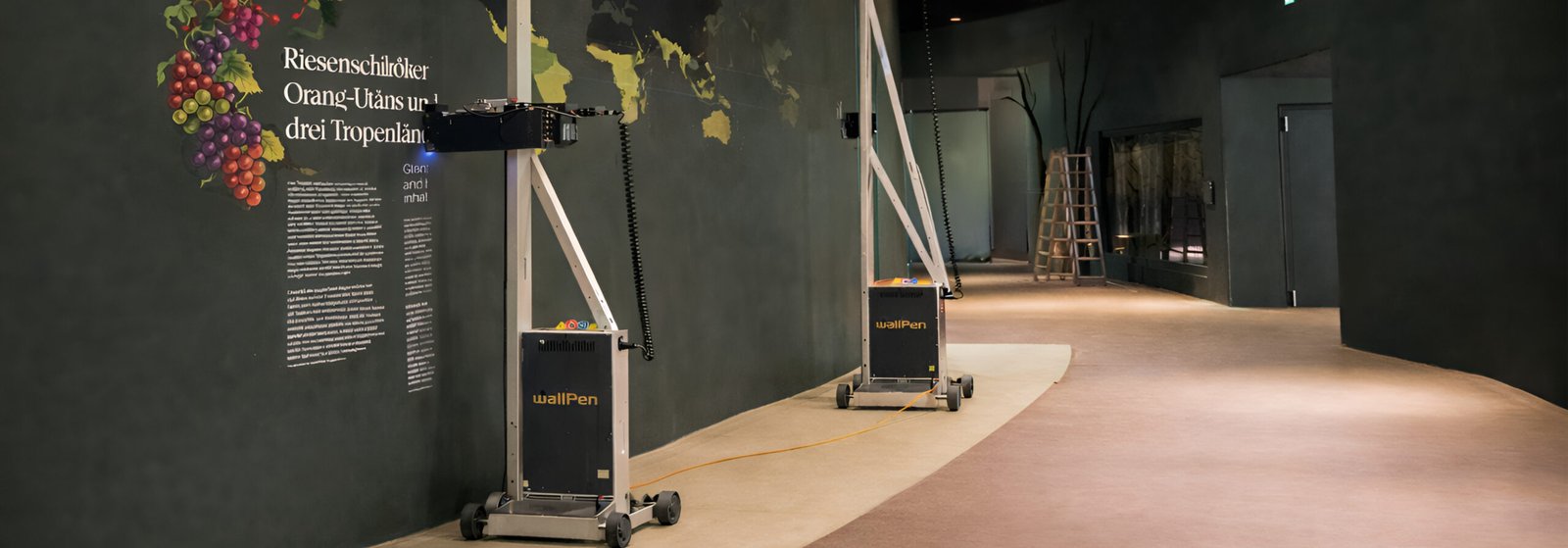

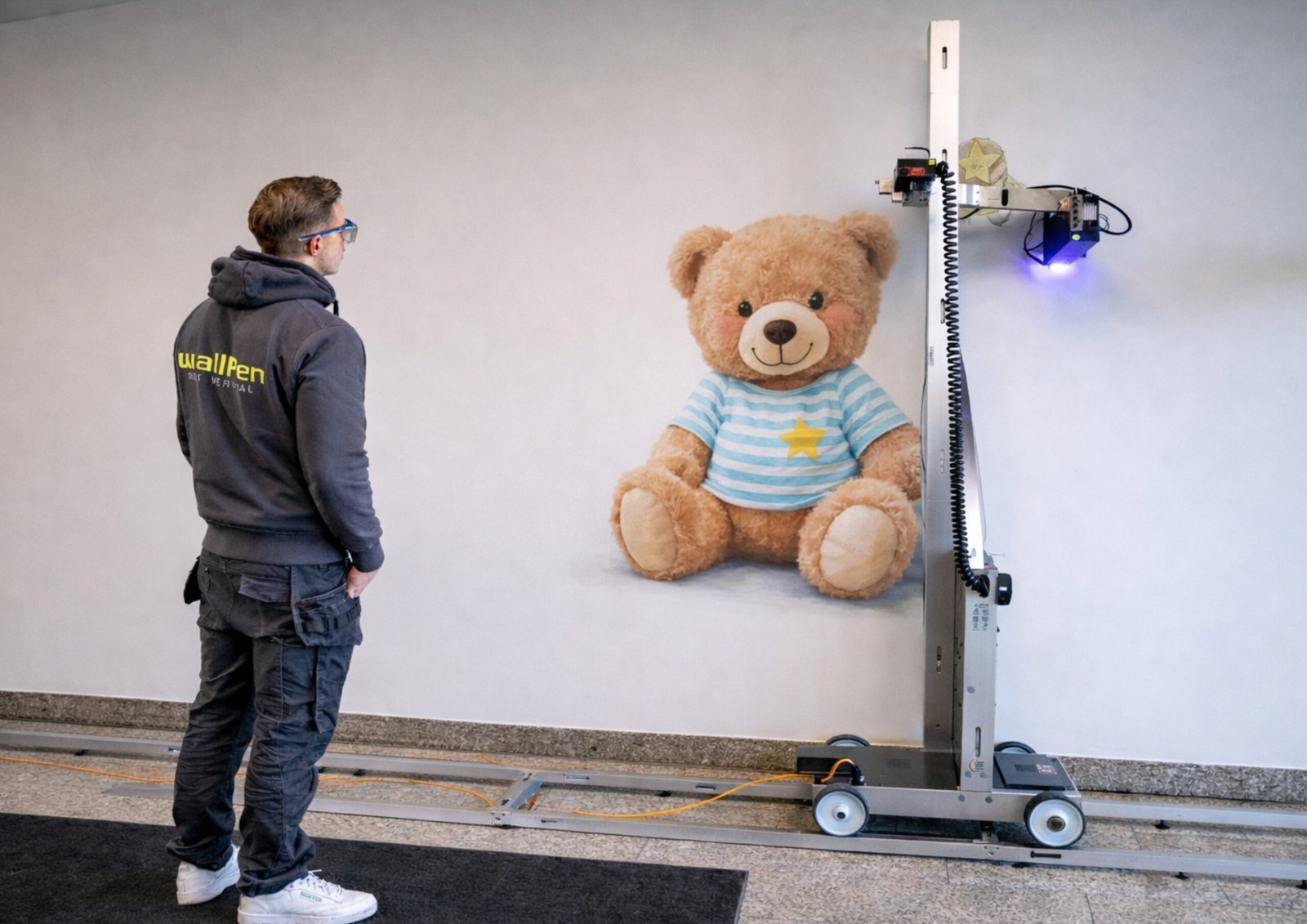

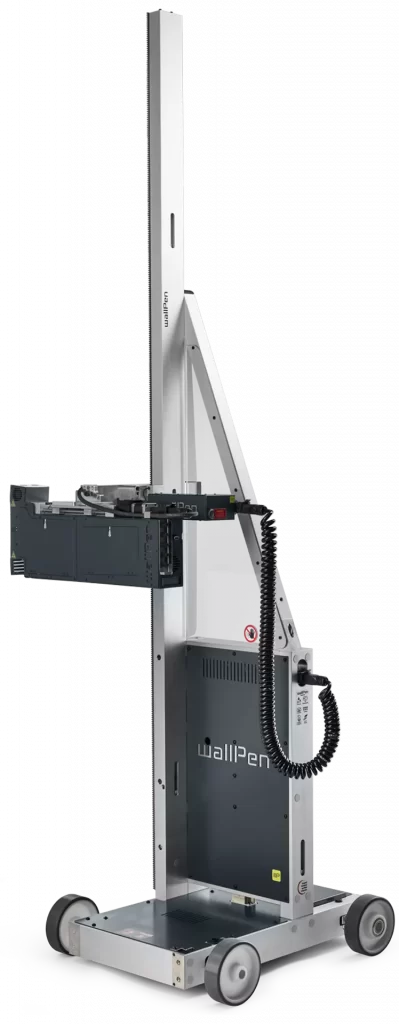

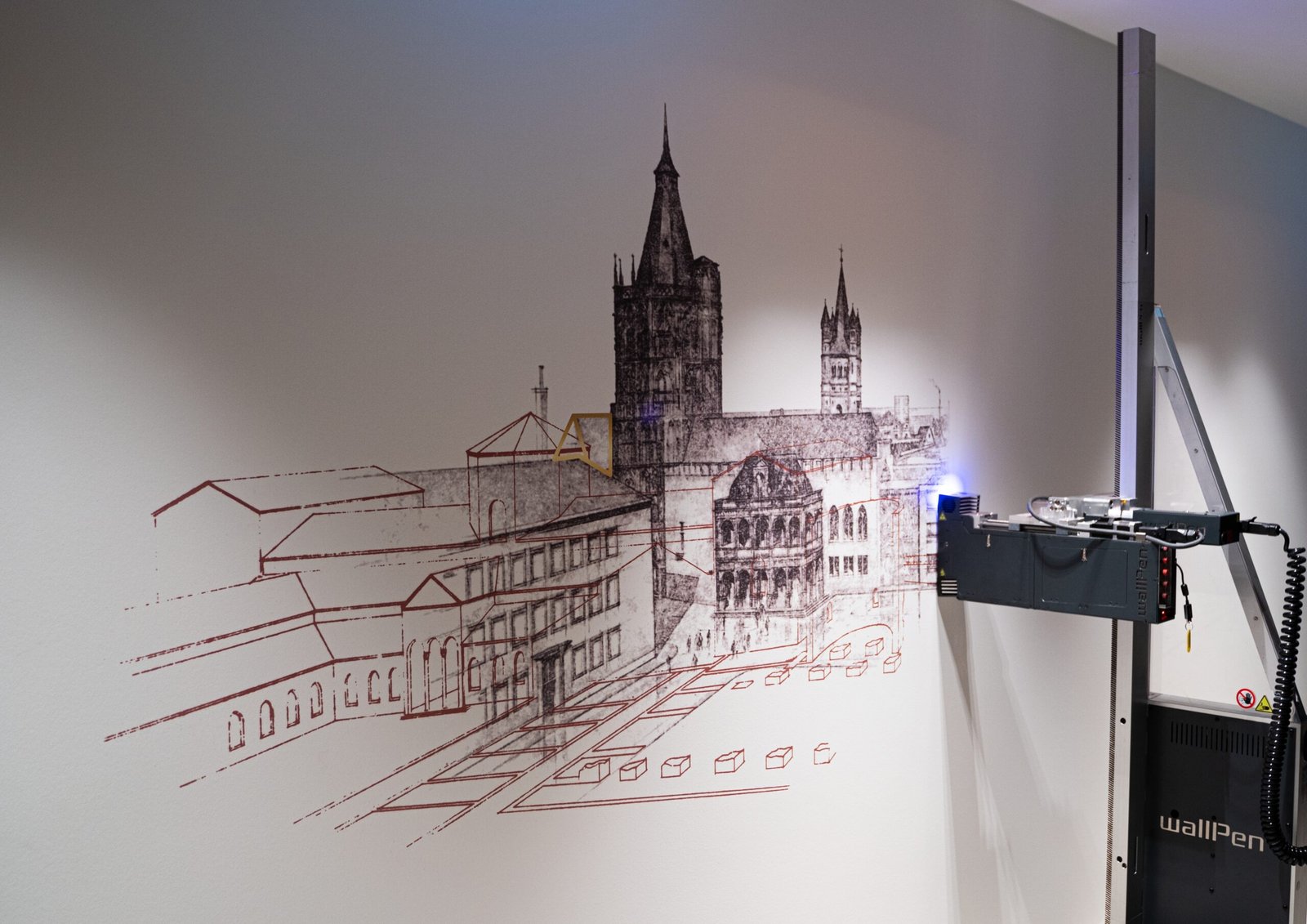

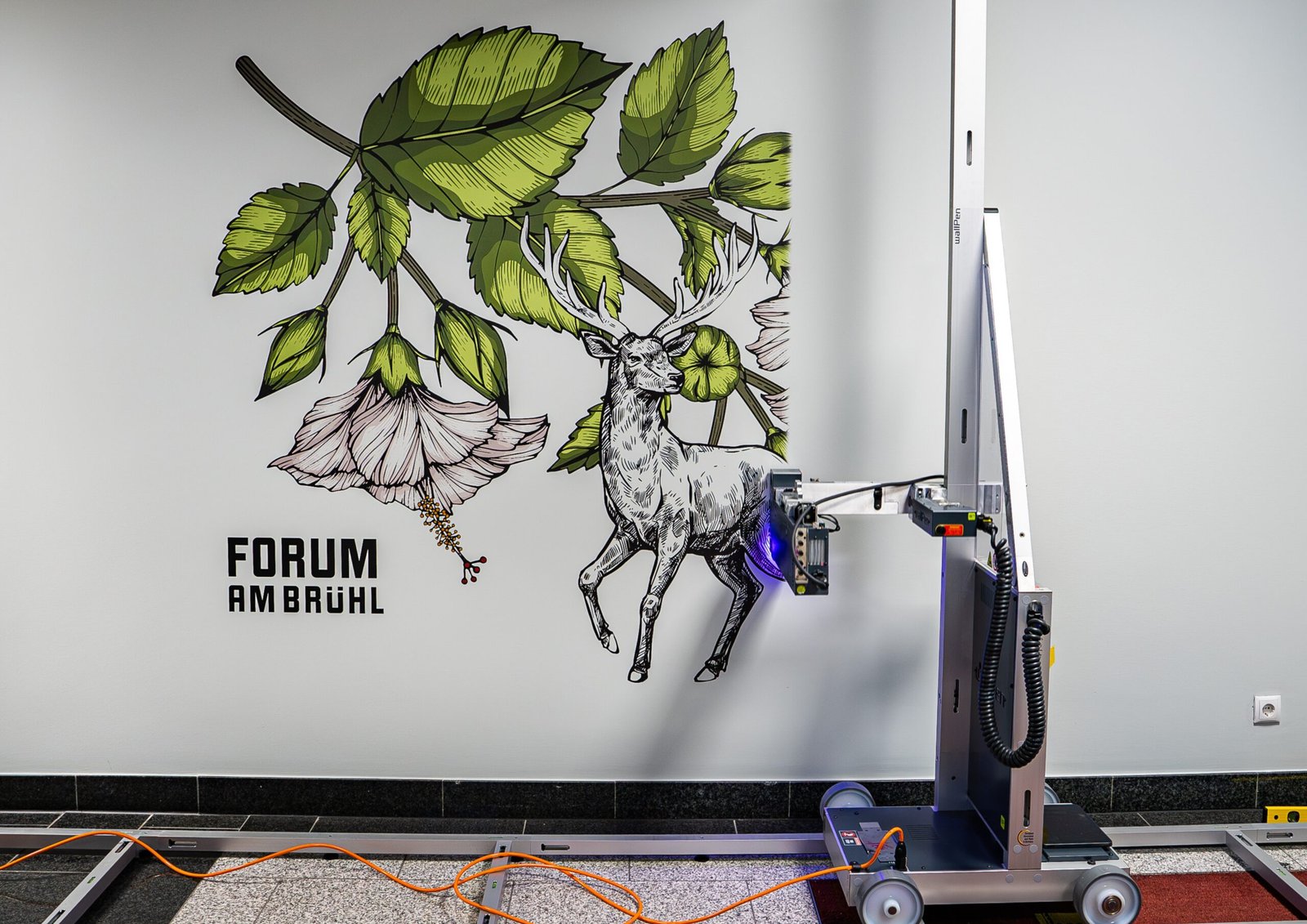

The printer stands on the floor on a wheeled platform with levelling and a steerable front axle, and travels in front of the wall, usually along a rail; nothing is fixed to the wall. Print height reaches up to four metres, width is not limited at all, so a full corridor or facade runs as one continuous piece of artwork with no seams or joins.
One device. One ink. Almost any wall.
Good for the environment
- Vegan ink made in the EU
- Solvent-free, with no PVC film to throw away
Fast and simple
- One device for all surfaces
- Indoor prints can last up to 12 years
- Direct print on the wall
Our promise of quality
- CMYK with optional white
- Scratch and abrasion resistant
- Up to 12 years indoors, depending on the surface, location and wear
- True colour results thanks to ICC profiles
- Waterproof and solvent resistant
Countless possibilities
- Prints on rough surfaces
- Unlimited width, print height up to 4 m
- Almost all surfaces printable
- One ink for all surfaces
The wallPen prints on almost anything.
If necessary, the printing substrate must be pre-treated. Each material should be tested before printing. We guide and supply the correct pre-treatment when it is needed.
Run your own numbers, or start from the worked model in our wall printing ROI guide.
Print speed is about 2 to 3 square metres per hour on typical jobs; wallPen's FAQ gives 0.8 to 10 square metres per hour depending on the settings, the surface, the number of passes and the resolution. Set a realistic speed for the work you do, add your setup time, and enter your own selling price per square metre. If a wall printer is one of several machines you are considering, our guide to choosing a UV printing machine in the UAE compares it with flatbed, cylindrical and conveyor printers. Before you settle on that price, our guide to pricing wall printing jobs covers minimum charges, artwork fees and the extra items worth quoting separately.
Each setup is counted as 30 minutes taken out of the working day. Gross margin only. Labour, transport to site, surface preparation, maintenance, rent and finance cost are not included. Replace the default price and ink cost with your own figures.

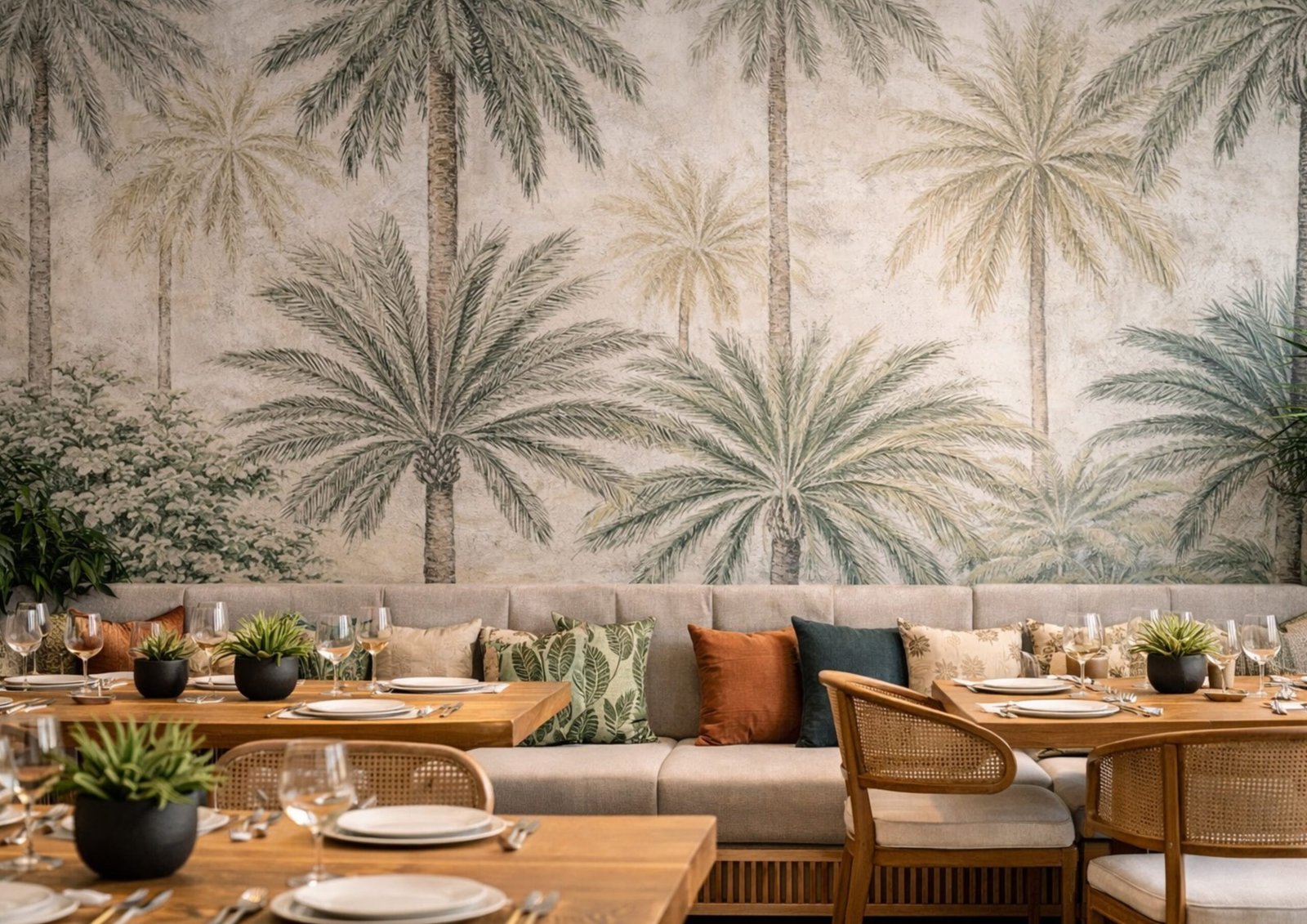

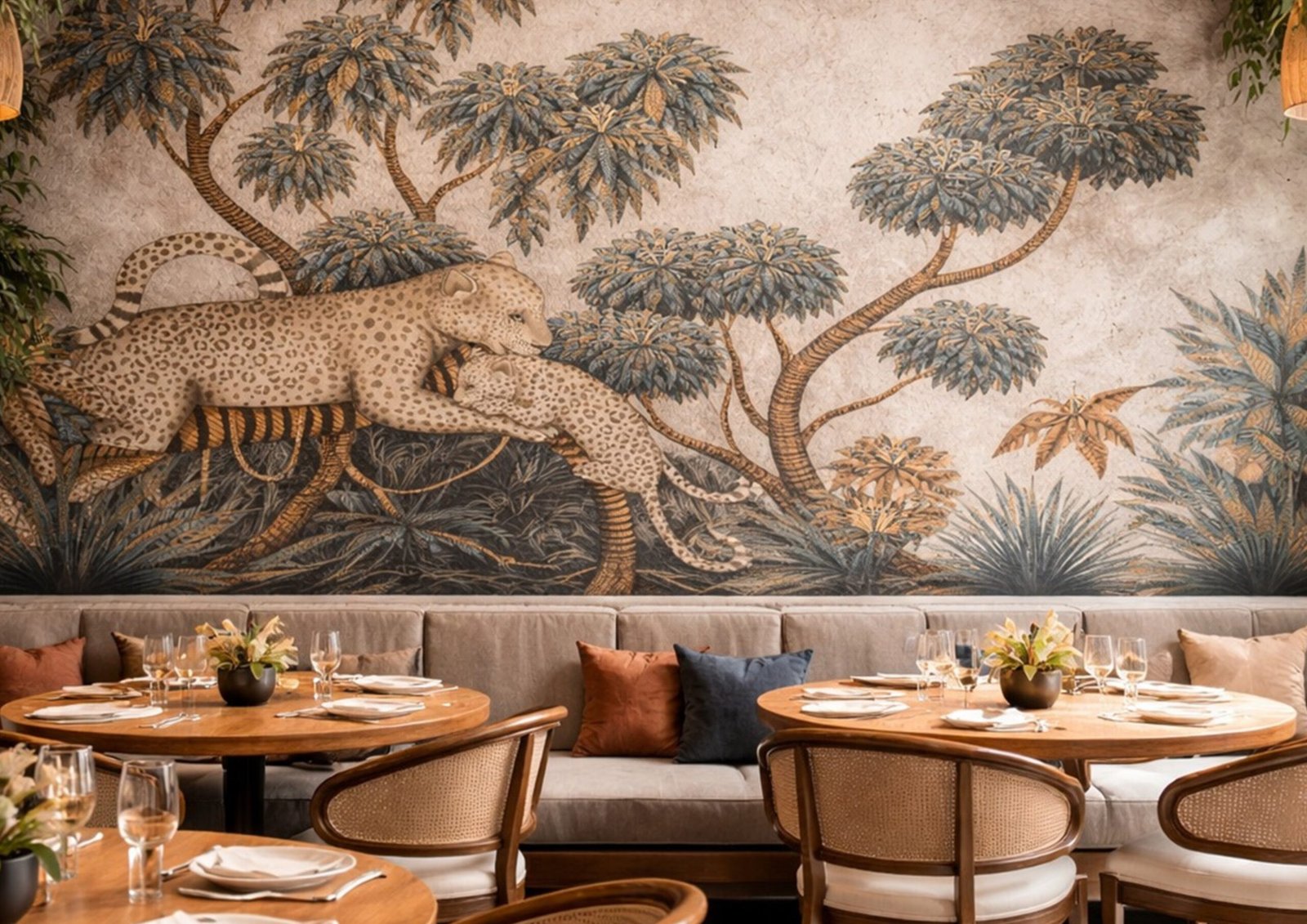

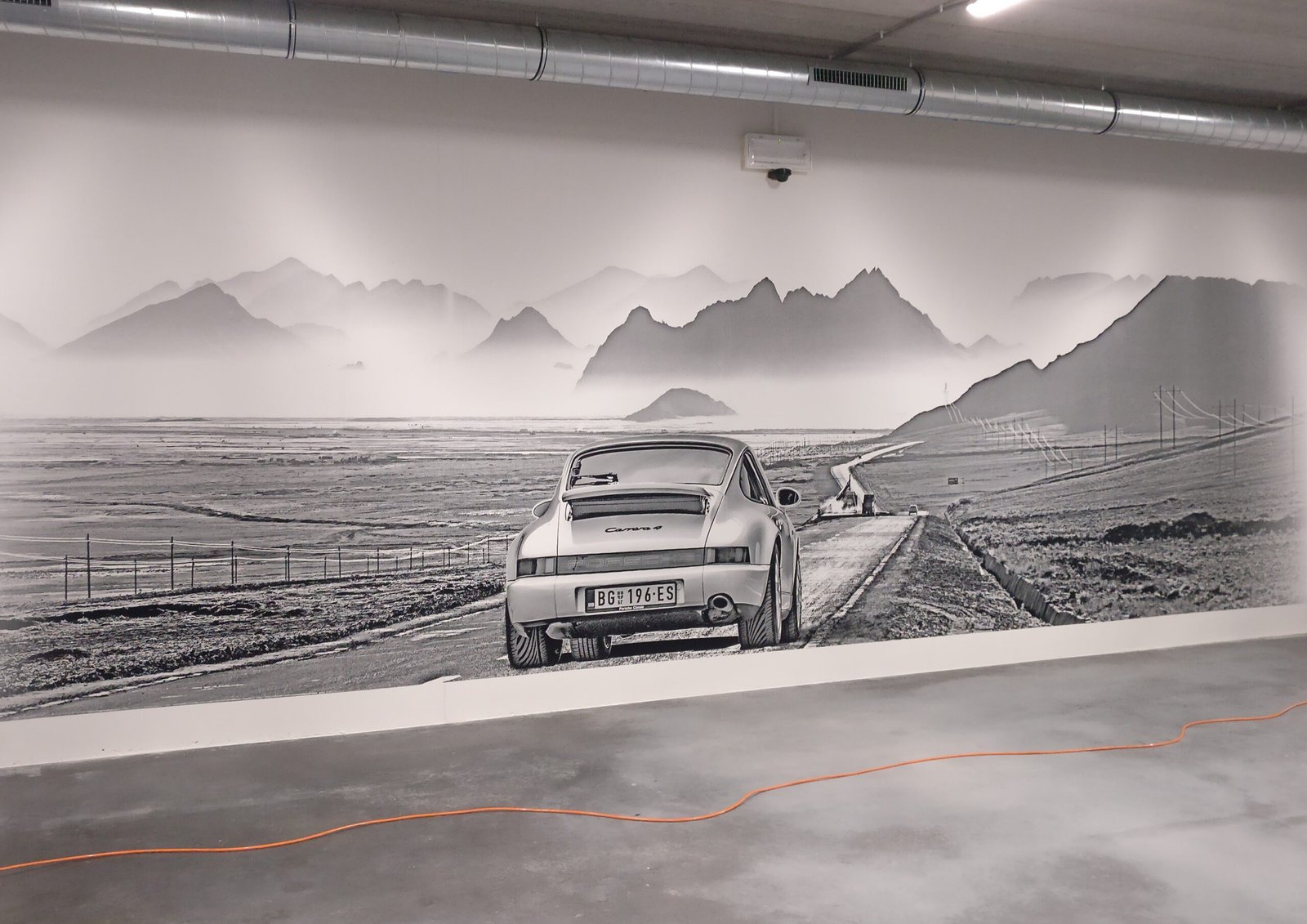

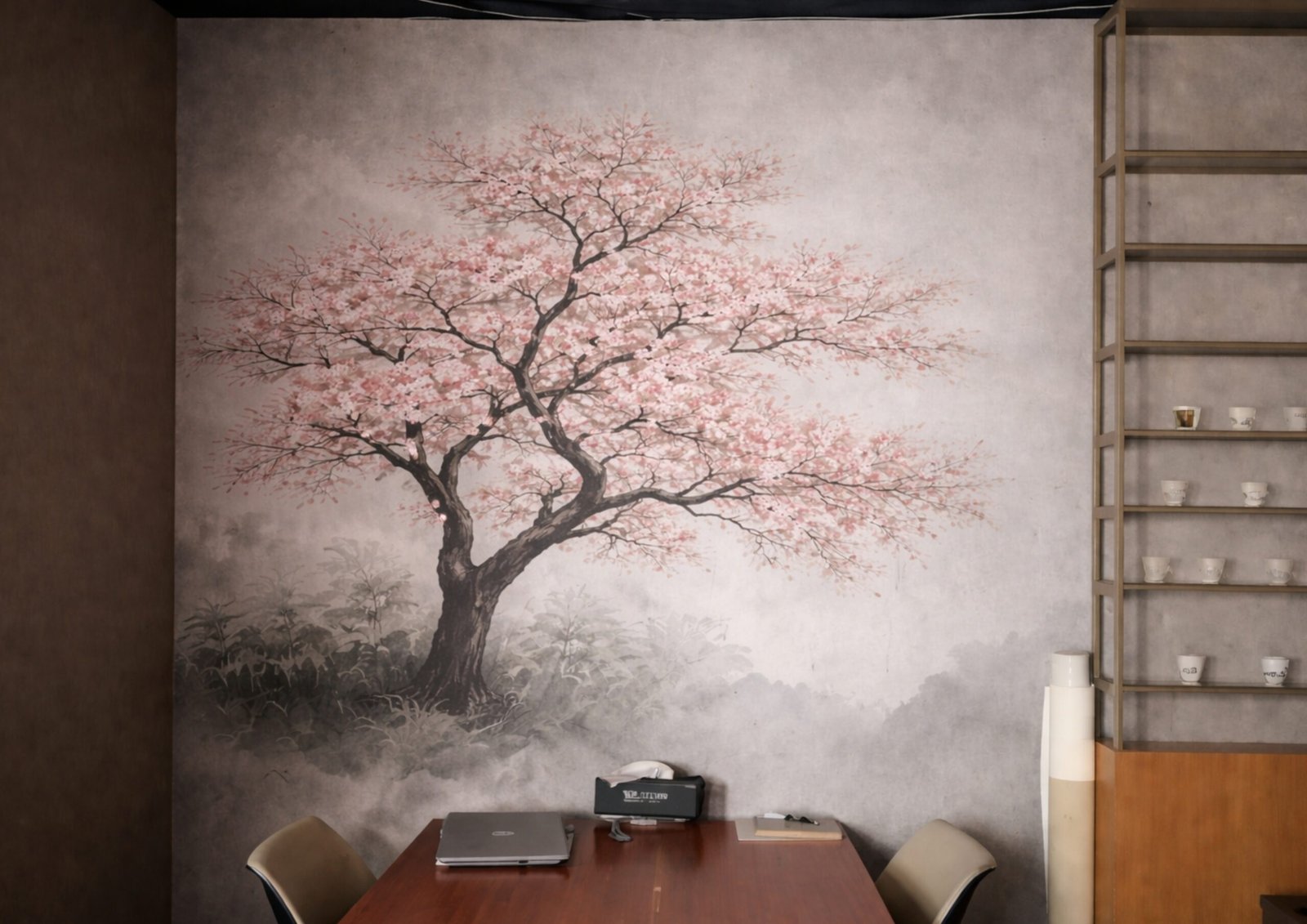

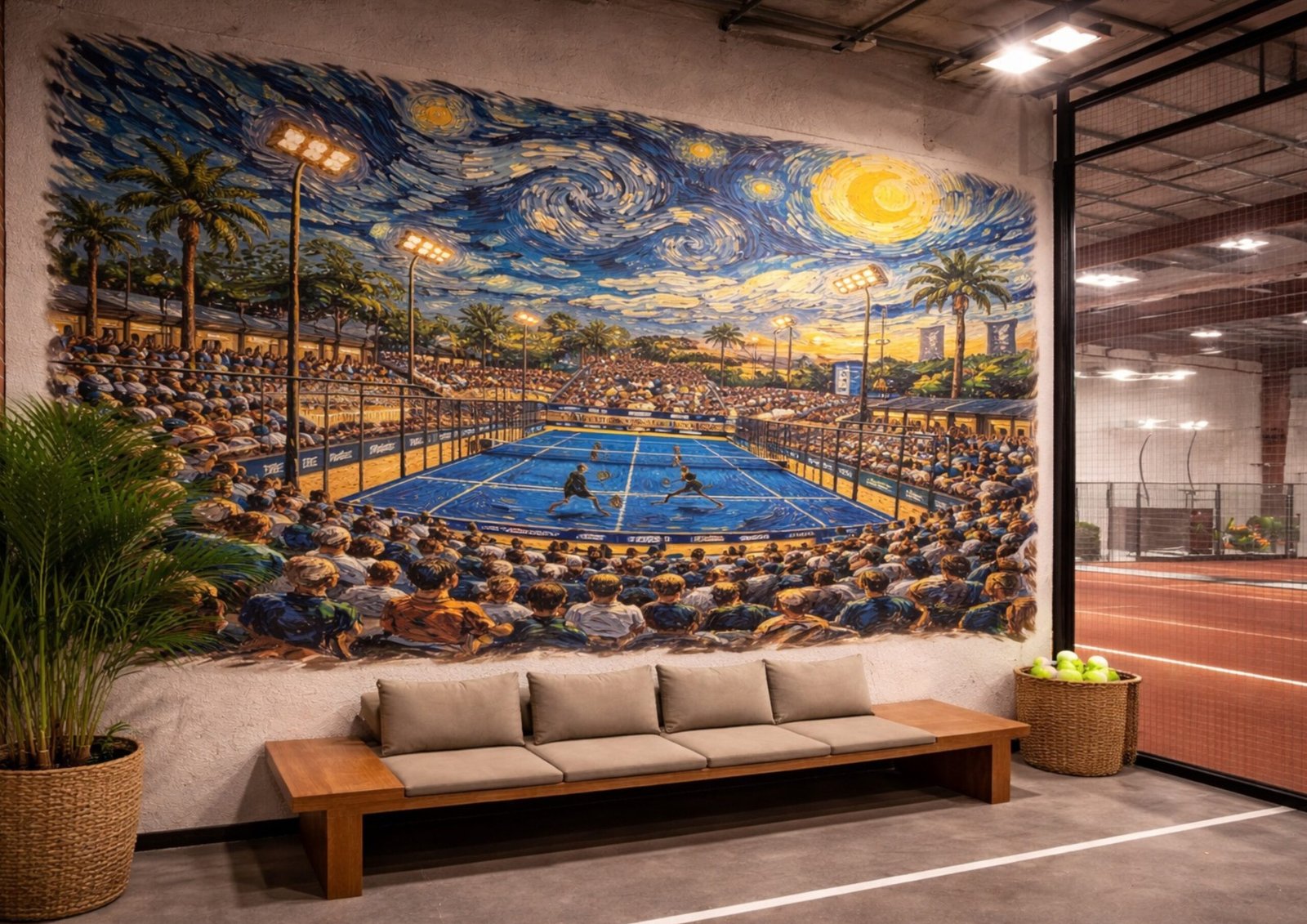

What it produces.
Before you invest.
PRO TECHnology is the exclusive distributor of wallPen in the Middle East, with its own team of engineers, local support, spare parts held locally, installation and operator training. If you are weighing up more than one machine, read our guide to comparing wall printing machines, including Chinese models, then book a demo to see the wallPen at work. The appointment dates from January 2026; the story, and what the local support includes, is in our partnership announcement.
What is the time needed to set up the wallPen?
One person can set the machine up in under 30 minutes, according to wallPen. Allow extra time on a new site for calibration and the wall check.
What is the print speed?
About 2 to 3 square metres per hour on typical jobs. wallPen's FAQ gives 0.8 to 10 square metres per hour depending on the settings. The speed you get depends on the wall surface, flat or curved, the number of passes, the resolution in DPI and the artwork size.
Can I remove the wall print?
- On glass with a ceramic hob scraper or razor blade. Otherwise, a print can always be painted over in two or three layers.
- Wood must be sanded. Metal or concrete needs sandblasting or glass bead blasting.
What is the ink quality?
- wallPen describes its UV ink as low-odour, vegan and made in Europe, without solvents or thinners.
- The inks are ideal for wall printing because they cure within milliseconds and are instantly scratch and abrasion resistant.
- For hotels, schools, healthcare sites and heritage buildings, ask us for the ink safety data sheet before work starts.
- The ink dries within milliseconds and is abrasion resistant, waterproof and solvent resistant.
Does the wall need to be perfectly smooth?
No. wallPen can print on smooth and textured walls.
Can you print on textured or uneven walls?
Yes. The printhead has a laser system that automatically adjusts the distance from the wall.
Is surface preparation required before printing?
Yes. Surface preparation depends on the material. We guide and supply the correct pre-treatment when needed.
How long does the print last indoors versus outdoors?
Indoors, prints can last up to 12 years, depending on the surface, location and wear, when proper surface preparation is followed. For outdoor applications, UV resistance is typically around 2 years depending on the material. That lifespan can be significantly extended, often to over 5 years, by applying a transparent UV protective coating.
Is the ink safe, and does it smell?
wallPen describes its UV ink as low-odour, vegan and made in Europe, without solvents or thinners, and the cured print is abrasion resistant. Ventilate the room while printing, and ask us for the ink safety data sheet before work in hotels, schools or healthcare sites.
What are the power requirements on site?
A normal power plug. A standard single phase socket is required: wallPen runs on 100 to 250 V and draws about 200 W while printing.
What file formats do you accept?
The wallPen app opens JPG, PNG, TIF, PSD and PSB files. Artwork made in Illustrator, or supplied as EPS or PDF, is exported to one of these first. File preparation is straightforward and user friendly, requiring only minimal design experience, and we provide a clear step by step guide to ensure a smooth process.
How much space is required between the wall and the print?

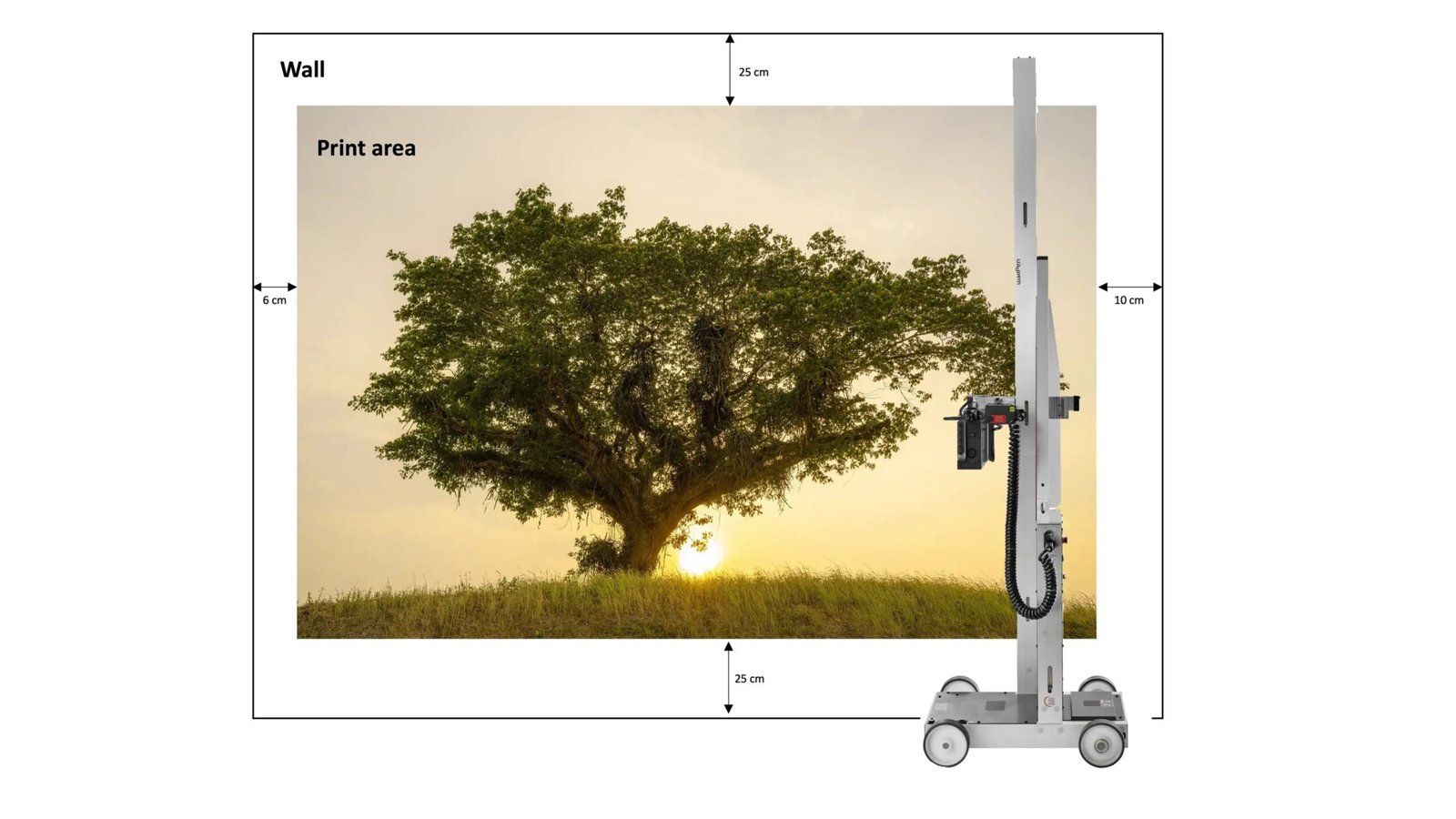

The printer requires 6 cm of space on the left, 10 cm on the right, and 25 cm clearance at both the ceiling and the floor. On open walls there are virtually no size limitations. If there are adjacent walls or obstructions on the sides, top or bottom, this minimum clearance is needed to ensure proper operation.
Transform any surface.
Any wall. Any material. Book a demonstration and see your own artwork printed straight onto a wall, or send us the site details and we will advise on surface preparation and production time.
