01 / Company

Direct Color SystemsUV flatbed printers
for the UAE and Middle East

PRO TECHnology is Direct Color Systems’ authorised distributor and partner in the Middle East. We supply, install and support the four current DCS UV LED flatbed printers, the UV-21MP, UV-32MP, UV-44DTS and UV-84DTS Gen2, from Dubai, as one of the UV printer families we supply. They print directly onto acrylic, wood, glass, metal and plastics, and are built around two patented capabilities that most flatbeds do not have: TEXTUR3D raised and embossed printing, and ADA compliant Braille signage. For metal work, see our guide to UV printing on anodised aluminium, and to place a flatbed against the other machine families, our guide to choosing a UV printing machine in the UAE. For accessible signage specifically, see printing Braille and tactile signage.

Origin Connecticut, USA

Engineered and manufactured in the United States.

Range Four current models

The MP Series (UV-21MP, UV-32MP) and the DTS series (UV-44DTS, UV-84DTS Gen2), from a 61 × 46 cm bed to 250 × 130 cm.

Engineering Patented technologies

The expert engineers behind DCS developed patented technologies such as TEXTUR3D and ADA / Braille printing.

Output Direct to substrate

Prints directly on substrates with high precision, textured and tactile finishes.

Direct Color Systems UV-84DTS Gen2 UV LED flatbed printer, print gantry and model badge
Single pass, raised output

Colour, white and clear are laid down together in one pass. The tonal value of the artwork decides the height, so the print is not just an image on the surface. It becomes the surface.

02 / Specialisation Why DCS and not a standard flatbed

TEXTUR3D texture and ADA Braille printing

Patented

TEXTUR3D raised and embossed printing

Colour, white and clear print together in a single pass, and the tonal value of the artwork controls the height. That gives real relief you can run your hand across, not a simulated shadow effect.

  • Raised logos, patterns and lettering
  • Embossed and debossed effects
  • Gloss, matte and textured finishes
  • Fine detail held at high resolution
Patented

ADA compliant Braille signage

DCS pioneered printing ADA and Braille signage with UV LED inkjet. Raised characters and Braille domes are printed in the same job as the artwork, with no separate raster beads, no engraving and no tooling.

  • Raised tactile characters
  • Braille domes printed in place
  • Wayfinding, room and facility signage
  • Short runs and one off replacements
03 / Machines The range

Four DCS UV flatbed printers, four bed sizes

Two series, four bed sizes. The MP Series (UV-21MP and UV-32MP) uses Chromasphere printheads; the DTS series (UV-44DTS and UV-84DTS Gen2) uses Ricoh Gen 6 heads. All four print CMYK, white and clear, and all four handle ADA Braille and textured work. The choice comes down to the size and thickness of what you print, and how much of it.

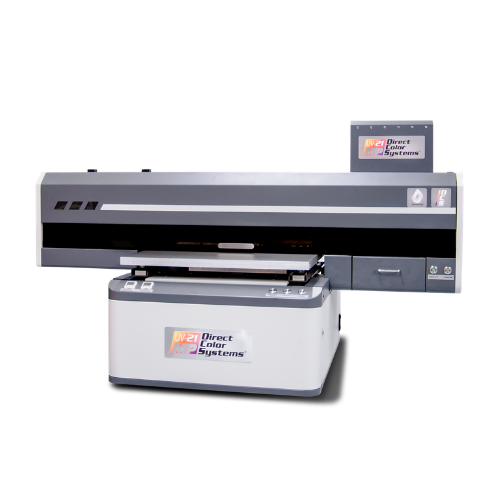

UV-21MP

Small
Direct Color Systems UV-21MP UV flatbed printer

Small multi purpose, industrial grade UV flatbed printer.

Print area61 × 46 cm
Max height18 cm
PrintheadsChromasphere

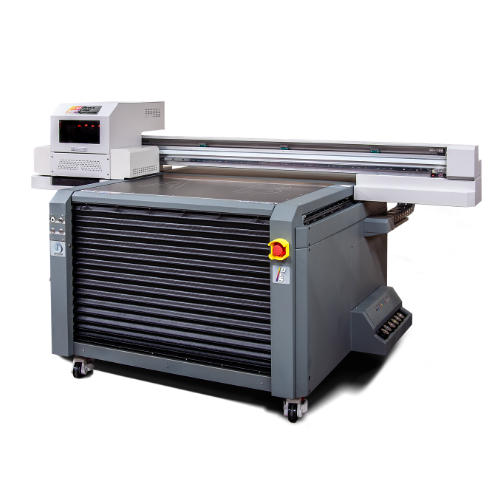

UV-32MP

Intermediate
Direct Color Systems UV-32MP UV flatbed printer

Intermediate multi purpose, industrial grade UV flatbed printer.

Print area60 × 90 cm
Max height32 cm
PrintheadsChromasphere

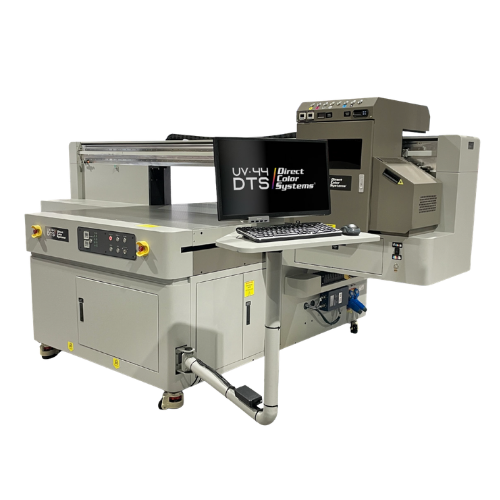

UV-44DTS

Medium
Direct Color Systems UV-44DTS UV flatbed printer

Medium multi purpose, optimised industrial grade UV flatbed printer.

Print area130 × 130 cm
Max height30 cm
Printheads4 × Ricoh Gen 6

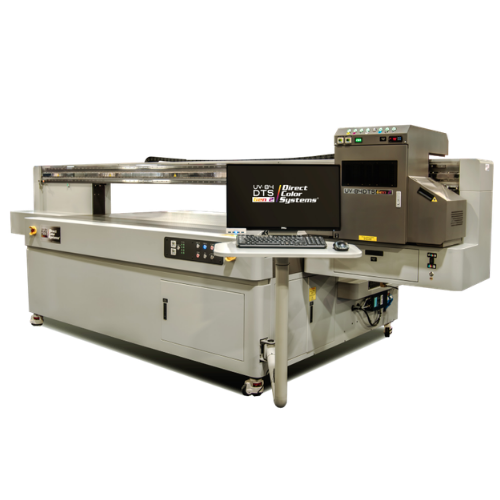

UV-84DTS Gen2

Large
Direct Color Systems UV-84DTS Gen2 UV flatbed printer

Large high performance industrial printer.

Print area250 × 130 cm
Max height30 cm
Printheads5 × Ricoh Gen 6
04 / Comparison DCS product comparison

DCS UV flatbed printer specifications

FeatureUV-21MPUV-32MPUV-44DTSUV-84DTS Gen2
Max print area61 × 46 cm60 × 90 cm130 × 130 cm250 × 130 cm
Print height (Z)18 cm32 cm30 cm30 cm
Max substrate size62 × 55 cm64.8 × 95.2 cmNot publishedNot published
Substrate weight8 kgNot published4.6 kg per m²4.6 kg per m²
Print headsChromasphere Piezo (5 to 12 pL)Chromasphere Piezo (5 to 12 pL)4 × Ricoh Gen65 × Ricoh Gen6
ResolutionUp to 720 × 2400 dpiUp to 720 × 1200 dpiUp to 605 × 2400 dpiUp to 605 × 2400 dpi
Ink coloursCMYK + White + Clear
Power requirementsOne 20 A single-phase circuit, 220 to 240 VOne 20 A single-phase circuit, 220 to 240 VTwo 20 A single-phase circuits, 220 to 240 VTwo 20 A single-phase circuits, 220 to 240 V
Printer weight166 kg350 kg760 kg1,480 kg
Best use casePromo items, gifts, ADA micro jobsSmall awards, medium signageADA braille, décor, wood and metal sheetsLarge format industrial production

Figures from Direct Color Systems’ current spec sheets. DCS notes that specifications are subject to change, so confirm them against the quotation for your configuration.

05 / Numbers DCS insights and ROI

Estimate output and gross margin

Set your shift pattern and a realistic efficiency, then enter your own selling price per square metre. The output figures come from the production table below, which uses DCS’s rated full-bed colour speeds.

Net output per day0
Net output per hour0
Output per month0
Gross margin per day0
Gross margin per month0

Gross margin only. Labour, maintenance, spare parts, consumables beyond ink, rent, finance cost and rejects are not included. Selling price and ink cost vary by application, so replace the default values with your own.

Production table at DCS rated speeds
CategoryUV-21MPUV-32MPUV-44DTSUV-84DTS Gen2
Colour, per hour2.7 m²4.5 m²14 m²28.2 m²
Colour and white, per hour2.3 m²4 m²10.5 m²21 m²
Textured, per hour0.5 m²1 m²1.4 m²2.8 m²
ADA Braille, per hour0.3 m²0.56 m²1 m²2 m²
Colour, per 8 hour shift21.6 m²36 m²112 m²225.6 m²

These are full-bed speeds from DCS’s current spec sheets, at 1200 dpi (textured and ADA work at 2400 dpi on the UV-84DTS Gen2). DCS’s web pages also quote 4.5 m² per hour for the UV-21MP and 5 m² per hour for the UV-32MP in 6-pass mode. Real output depends on the substrate, artwork, ink coverage, number of layers, texture height, loading and changeover. Textured and ADA work runs slower than flat colour work because more ink is laid down.

06 / Applications Typical DCS applications

UV flatbed applications: tactile and Braille signs

For flat-fronted bottles, see our perfume bottle printing case study. For outdoor metal, see our guide to UV printing on aluminium and ACP outdoors, and for adhesion by substrate, UV printing problems by material.

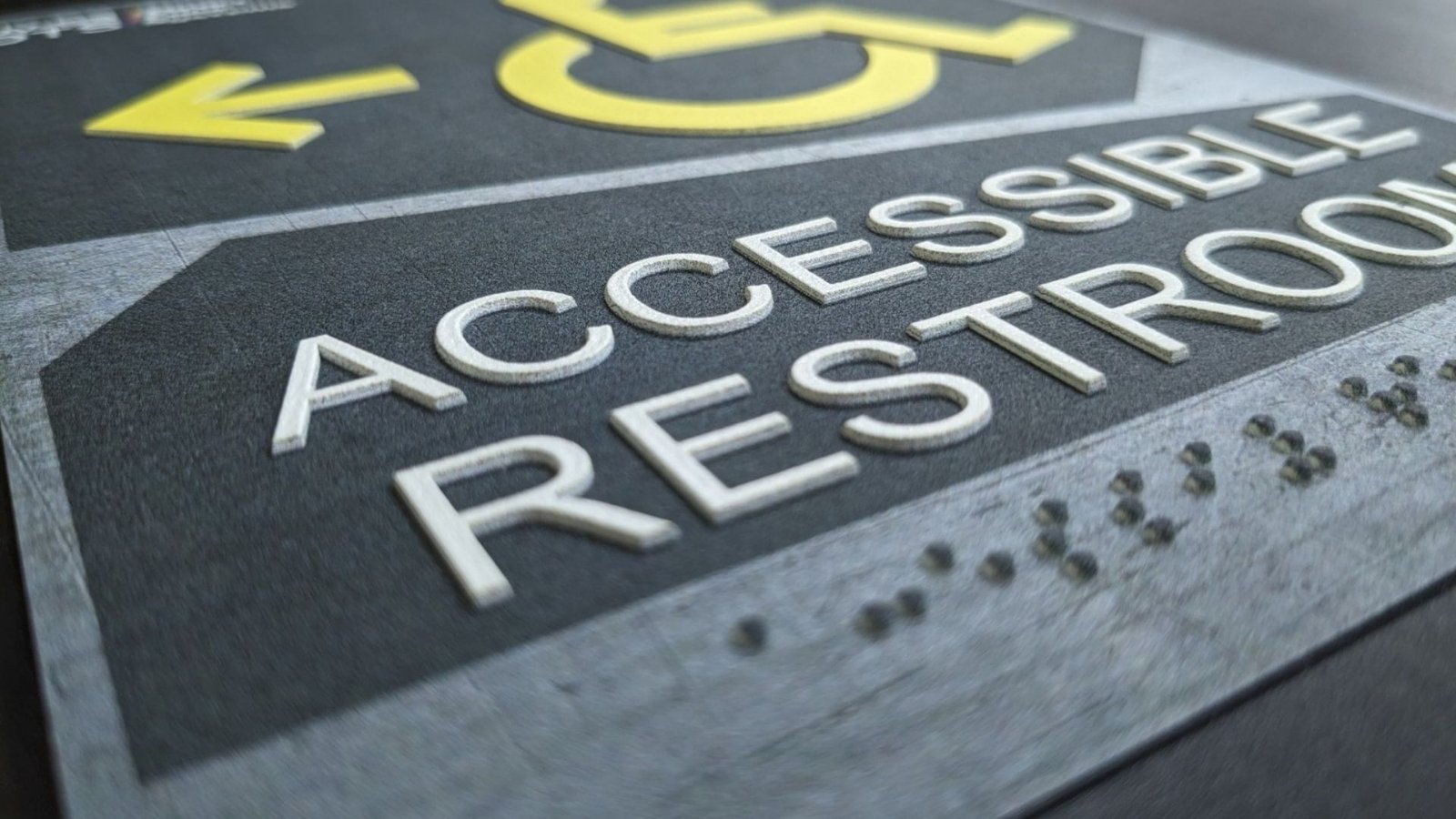

Accessible restroom sign with raised lettering, a yellow wheelchair symbol and Braille domes
Braille signage

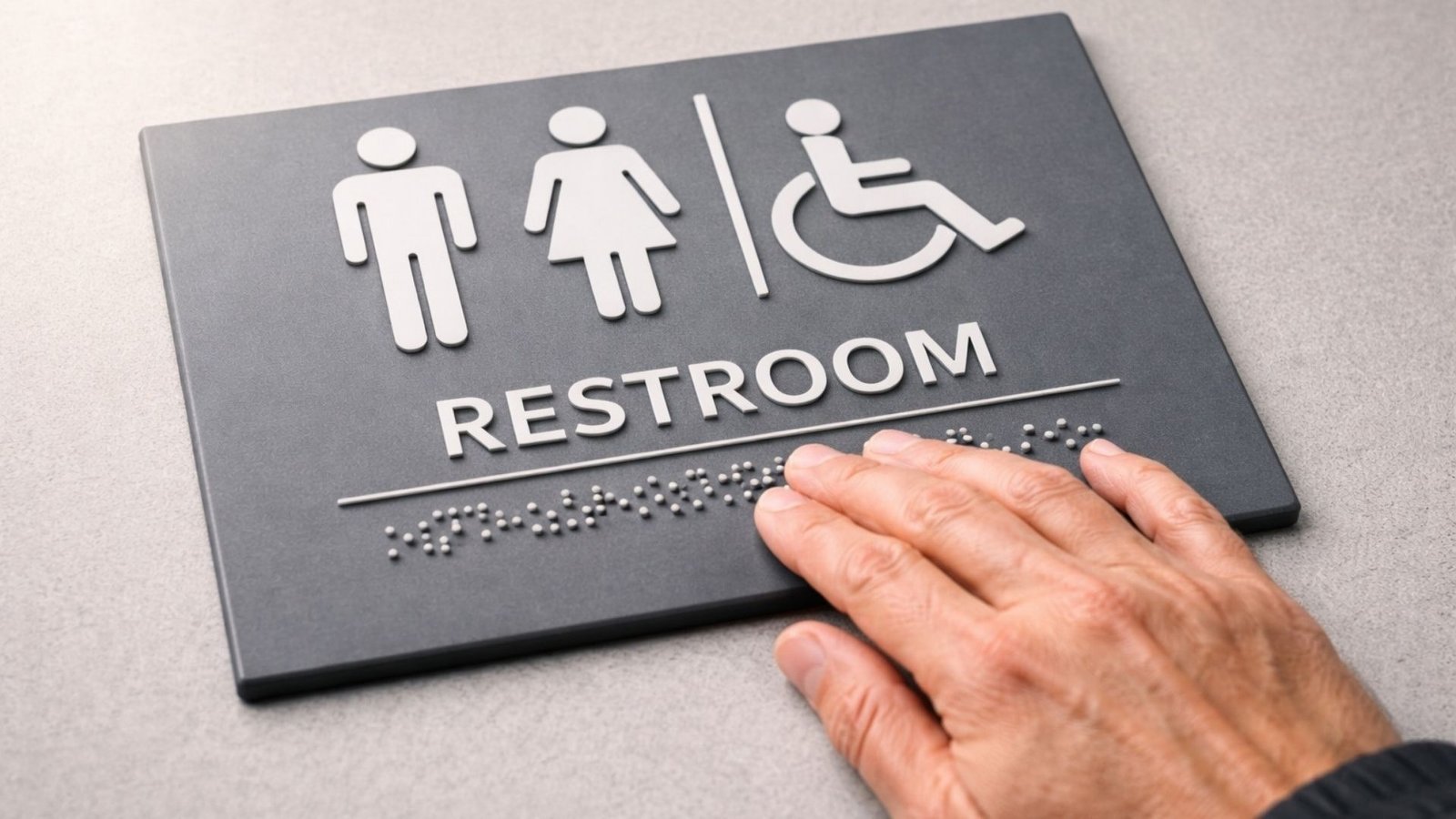

Hand reading the Braille line on a grey restroom sign with raised pictograms
Accessible signage
Braille restroom signs printed on the bed of a Direct Color Systems UV flatbed, under the print carriage
ADA signs on the bed. Image: Direct Color Systems

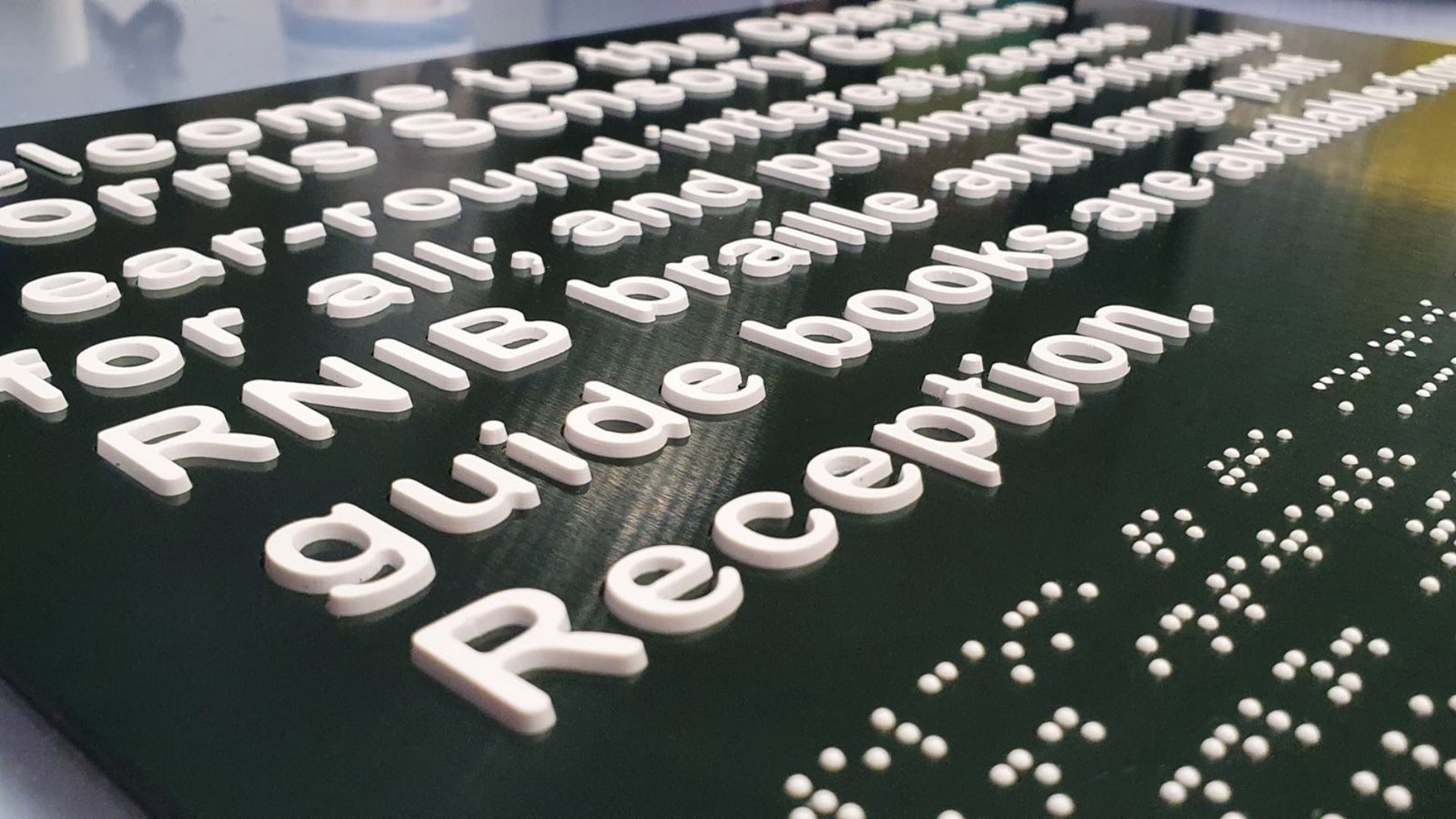

Close-up of a tactile sign with raised lettering and Braille domes on a dark green panel
Custom signage
07 / FAQ Frequently asked questions

DCS UV flatbed printer questions

What materials can DCS UV printers print on?

DCS printers can print on a wide range of materials including wood, glass, metal, acrylic, plastics, leather, and various promotional items.

Do surfaces require pre-treatment before printing?

In many cases, DCS UV printers can print directly without pre-treatment. However, for certain materials, a primer may be recommended to improve adhesion.

What is direct-to-surface UV printing?

It is a process where UV curable inks are printed directly onto a substrate and instantly cured using UV light, resulting in durable and high quality prints.

Are DCS UV prints durable?

UV-cured prints resist scratching and fading well, but durability depends on the substrate, any primer or pre-treatment, and any coating. DCS states that every substrate should be tested for adhesion and durability, so we test your material before you commit, including for outdoor work.

What types of inks are used in DCS printers?

DCS printers run UV LED inks that DCS formulates for its own printheads, ink delivery and curing, in CMYK, white and clear. The MP Series uses CHROMASPHERE general purpose and Chromasphere Fx flexible inks. DCS advises that introducing another ink would require many adjustments and brings some risk.

Do the inks require drying time?

No, UV inks cure instantly under UV light, which eliminates drying time and speeds up production.

Can DCS printers handle high-volume production?

Yes, DCS systems are designed for both short runs and high volume production with consistent output quality.

Is white ink printing supported?

Yes, DCS printers support white ink, allowing printing on dark or transparent surfaces with excellent opacity.

How detailed are the prints?

Resolution runs up to 720 × 2400 dpi on the UV-21MP, 720 × 1200 dpi on the UV-32MP and 605 × 2400 dpi on the UV-44DTS and UV-84DTS Gen2, with variable drop sizes, so fine text and detailed artwork hold well.

Can cylindrical or irregular objects be printed?

Yes. The UV-21MP and UV-32MP take the DCS EasyCyl rotary option for cylindrical items from 35 to 150 mm in diameter, and jigs hold irregular objects in place on the bed. For bottles, cans and jars in volume, a dedicated cylindrical printer is the better fit.

What kind of maintenance is required?

Routine maintenance includes printhead cleaning and basic system checks to ensure consistent performance and longevity.

Is training provided for operating the printer?

Yes, we provide training and support to ensure users can operate the printers efficiently and confidently.

What industries commonly use DCS printers?

DCS printers are widely used in promotional products, signage, industrial printing, packaging, and custom manufacturing.

Who is the Direct Color Systems distributor in the UAE?

PRO TECHnology is Direct Color Systems’ authorised distributor and partner in the Middle East. We supply, install and support DCS UV flatbed printers from Dubai, with training, consumables and spare parts.

What is the difference between the MP Series and the DTS series?

The MP Series (UV-21MP and UV-32MP) covers small and intermediate formats, with Chromasphere printheads, a negative-pressure ink system and the EasyCyl rotary option. The DTS series (UV-44DTS and UV-84DTS Gen2) covers medium and large formats, with Ricoh Gen 6 printheads, 130 × 130 cm and 250 × 130 cm beds and material up to 30 cm thick.

How much does a UV flatbed printer cost?

It depends on the model and configuration, so we quote each one. The series, bed size, options such as the EasyCyl rotary attachment and jigs, installation and training all change the figure. Running cost depends mostly on ink coverage, the share of white and clear, and maintenance; the calculator above estimates output and gross margin from your own figures.

Can I test a DCS printer in Dubai before buying?

Yes. Book a demonstration at our Dubai facility, or send us your material and we will print it, test it and report back. Bring your own substrate and artwork, because DCS advises that every substrate is tested for image receptivity, adhesion and durability before production.

Next step

Test a DCS UV flatbed on your material in Dubai

Bring raised, textured and ADA compliant printing into your production. Book a demonstration at our Dubai facility, or send your material and we will print it, test it and report back.
